Video recorder
|
| Brand |
EZVIZ |
| Model |
EZ-CS-X5S-4P |
| Inputs for IP cameras |
4 LAN PoE Ports + 1 Ethernet LAN Port |
| Video compression format |
H.265 |
| Maximum resolution |
5 Mpx |
| Decoding capacity |
4 x 1080p@20FPS or 5 Mpx with low frame rate |
| IP compatible cameras |
EZVIZ (native protocol), ONVIF |
| Bidirectional audio |
1 channel: Audio IN / Audio OUT |
| Video outputs |
1 HDMI FullHD, 1 VGA Full HD |
| Total bandwidth |
40 Mbps |
| Main Stream recording |
5 MP / 4 MP / 3 MP / 1080p / UXGA / 720p / VGA / 4CIF / DCIF / 2CIF / CIF / QCIF |
| Simultaneous multifunction |
Pentaplex: Live, Recording, Playback, Backup and Remote Access |
| Alarms |
No |
| Recording method |
Manual, programmed, motion detection |
| External Backup |
USB / HDD USB memory |
| Internal memory |
1 SATA HDD 3.5" of up to 8 TB (not included) |
| Communication |
2 x USB 2.0 / 1 x RJ45 (Ethernet) |
| Remote access |
Web Browser, EZVIZ Smartphone App |
| Power |
DC 48V / 1.36A |
| Dimensions / Weight |
44.5 (H) x 270 (W) x 235 (D) mm / 0.9 Kg |
|

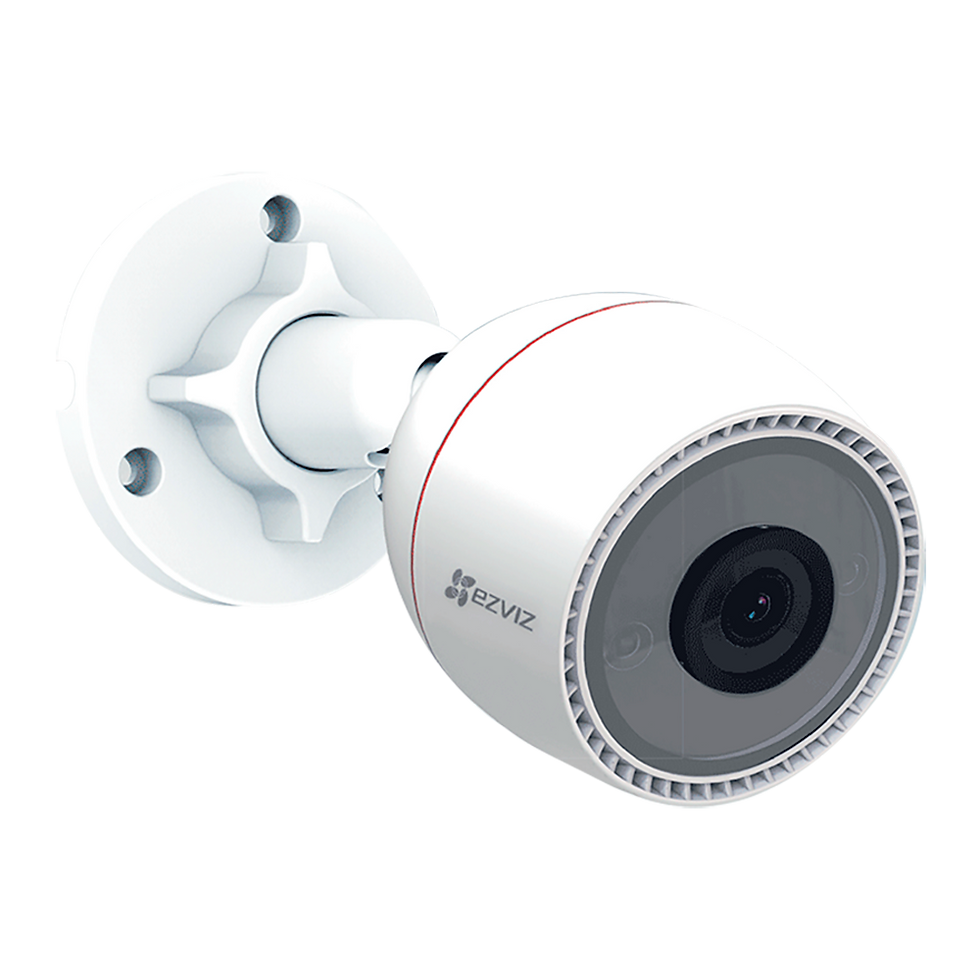

IP cameras
|
| Brand |
Ezviz |
| Model |
EZ-C3T / CS-CV310-B0-1B2ER |
| Image sensor |
1/2.7” Progressive Scan CMOS |
| Maximum resolution |
2 Megapixel (1920x1080) |
| Coding resolution |
1080p (1920x1080) / 25 FPS |
| Compression |
H.264 |
| Lens |
2.8 mm Wide angle of 104º horizontal and 114° diagonal |
| Infrared lighting |
0 Lux / IR LED (30m) |
| Functions |
BLC, DWDR, 3D-NR |
| Network interface |
1xRJ45 10/100M |
| Internal memory |
MicroSD Card, Max 128 GB (not included) |
| Audio |
No |
| Remote access |
Safire Control Centre Smartphone App & PC Software |
| Power |
DC 12 V 6W / PoE |
| Use |
Indoor and outdoor camera/ impermeable IP66 |
| Temp. operation |
-30º C ~ +60º C |
| Dimensions |
71.6 mm (H) x 71.6 mm (W) x 151 (D) mm |
| Weight |
333 g |
